Rear Shock Absorber for ZNEN R9 125 III

Rear Shock Absorber for ZNEN R9 125 III

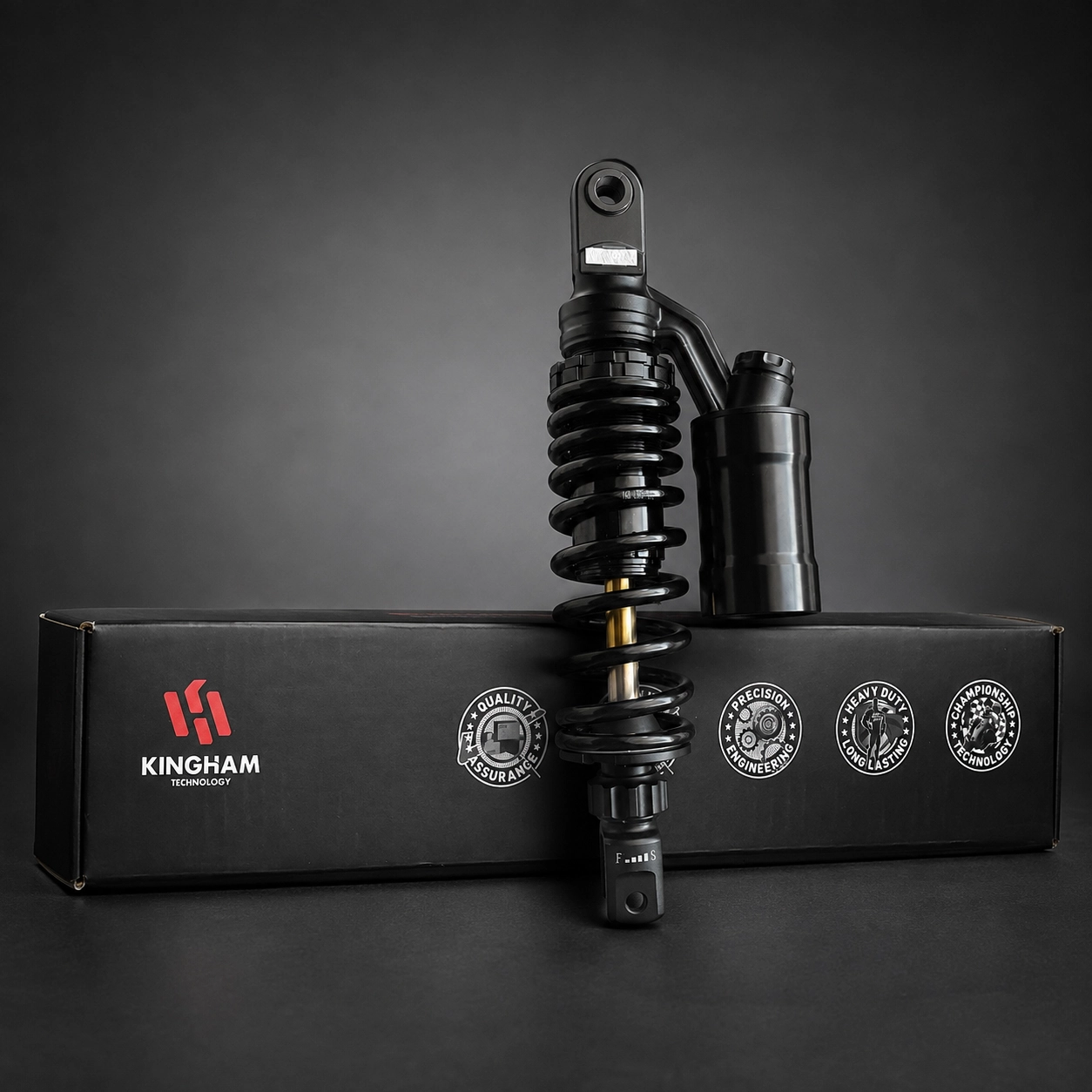

Kingham H154C2 3-Way Piggy Back rear shock absorber is a premium suspension upgrade selected for the ZNEN R9 125 III scooter.

Its gas-charged hydraulic construction, aluminium body and external piggy-back reservoir provide a wider adjustment range than a conventional OEM rear shock absorber.

3-Way Adjustable Suspension

Spring preload: adjustment of spring preload to suit rider load and suspension setup.
Compression damping: adjustment of the shock response during compression.
Rebound damping: adjustment of the return speed after compression.

The external piggy-back reservoir increases the available hydraulic volume and helps provide more consistent damping under demanding operating conditions.

Technical Specifications

Manufacturer: Kingham Technology
Model: H154C2
Type: Rear mono shock absorber
Construction: Nitrogen gas-charged hydraulic
Reservoir: External piggy-back reservoir
Body: Aluminium
Length: 325 mm
Spring preload: Adjustable
Compression damping: Adjustable
Rebound damping: Adjustable
Configuration: Single rear shock
Manufacturer warranty: 12 months

Performance Upgrade for ZNEN R9 125 III

Explore the complete suspension upgrade concept for the
ZNEN R9 125 III, including the Kingham 3-Way Piggy-Back rear shock absorber.

View the ZNEN R9 125 III Suspension Upgrade

Available in Montenegro through SIEMOTO.
